Install and Set Up ROS Noetic + Gazebo / Create ROS Workspace

🧱 1. Install and Set Up ROS Noetic + Gazebo / Create ROS Workspace

1. Install ROS Noetic If not yet installed, use the Fishros one-click installation script to install ROS Noetic.

Follow the recommended options, you can refer to the following selections:

[1]: One-click installation (recommended): ROS (supports ROS/ROS2, Raspberry Pi, Jetson)

[1]: Change system sources before continuing installation

[1]: Auto-test and select the fastest source

[1]: USTC mirror source (recommended for domestic users in China)

[1]: noetic (ROS1) desktop version

Install Gazebo (Noetic defaults to Gazebo 11):

sudo apt install ros-noetic-gazebo-*
sudo apt install ros-noetic-gazebo-ros-pkgs ros-noetic-gazebo-ros-control

1. Create Workspace

mkdir -p ~/catkin_ws/src
cd ~/catkin_ws/src

1. Clone Repositories

git clone -b noetic https://github.com/ROBOTIS-GIT/turtlebot3.git
git clone -b noetic https://github.com/ROBOTIS-GIT/turtlebot3_msgs.git
git clone -b noetic https://github.com/ROBOTIS-GIT/turtlebot3_simulations.git

1. Build Open a new terminal.

   cd ~/catkin_ws
   catkin_make


2. Environment Variables

Automatically load the workspace environment (add to .bashrc):

echo "source ~/catkin_ws/devel/setup.bash" >> ~/.bashrc
source ~/.bashrc

Specify the TurtleBot3 robot model (options: burger / waffle / waffle_pi):

echo "export TURTLEBOT3_MODEL=burger" >> ~/.bashrc
source ~/.bashrc

---

🚀 2. Launch Gazebo Simulation

✅ Launch Empty Environment

Open a terminal:

roslaunch turtlebot3_gazebo turtlebot3_empty_world.launch

This will start Gazebo and load an empty world with the TurtleBot3 robot model.

---

🌍 Launch World with Obstacles / Environments

For example, to launch the default world:

roslaunch turtlebot3_gazebo turtlebot3_world.launch

Or a house environment:

roslaunch turtlebot3_gazebo turtlebot3_house.launch

Note: Loading the house world for the first time may take longer as it downloads models.

---

🎮 3. Control Robot Movement

To control the robot in Gazebo:

🕹️ Keyboard Control

Open a new terminal (keep Gazebo running), then:

roslaunch turtlebot3_teleop turtlebot3_teleop_key.launch

This enables keyboard control (W/A/S/D for forward/backward/rotation), spacebar to stop, etc.

---

🧠 4. Control Robot Using ROS Nodes

If you want to write your own ROS node to publish velocity commands:

📡 ROS Topic Control Example

In another terminal:

rostopic pub /cmd_vel geometry_msgs/Twist '{linear: {x: 0.2, y: 0.0, z: 0.0}, angular: {x: 0.0, y: 0.0, z: 0.5}}'

This makes the robot move forward and rotate slowly (just an example, modify according to your code). You can also write a node to publish geometry_msgs/Twist to /cmd_vel.

---

🧩 5. Optional: Launch Obstacle Avoidance / SLAM / Navigation

Official examples also include preset launch files:

roslaunch turtlebot3_gazebo turtlebot3_simulation.launch

This launches the simulation environment with obstacle avoidance, navigation, and other nodes (depending on which packages you've installed).

---

🛠️ Common Issues & Notes

✔ Cannot find launch file Ensure the workspace is properly compiled and sourced, otherwise Gazebo launch will report package not found errors.

✔ ROS environment not loaded Each new terminal must run source ~/catkin_ws/devel/setup.bash to use turtlebot3 commands.

✔ Gazebo shows blank screen May be due to version mismatch between Gazebo and ROS libraries. Confirm ROS Noetic is installed with the corresponding Gazebo 11. (Installing via apt usually ensures compatibility)

---

If you'd like, I can also write you a complete ROS Python example program to make the TurtleBot3 automatically execute simple actions in Gazebo (such as obstacle avoidance or moving in a straight line). Would you like that?

Additional Supplementary Content

1. ~/.bashrc and source ~/.bashrc

• ~/.bashrc file
• ~/.bashrc is a hidden configuration file located in the Linux user's home directory (~ represents the current user's home directory). It's one of the Bash shell configuration files (the default command-line interpreter), typically used to store user environment variables, aliases, shell configurations, etc.
• For example, you can set commonly used command aliases or change the command prompt style, or even set paths to help the system recognize new programs and scripts.

• Common content:

  export PATH=$PATH:/opt/myprogram/bin
  alias ll='ls -alF'


  Here export PATH adds a new path to the system's environment variables, and alias creates a simplified command.

• source ~/.bashrc

• When you modify the ~/.bashrc file, changes don't take effect immediately. If you want the new configuration to take effect immediately, execute in the command line:

  source ~/.bashrc


• The source command reads and executes the specified file's content, so you don't need to restart the terminal window to apply the new settings in the current session.

In Windows system's Ubuntu terminal, it doesn't source ~/.bashrc automatically. So using it to execute some scripts may show errors, such as: substitution args not supported: No module named 'defusedxml'.

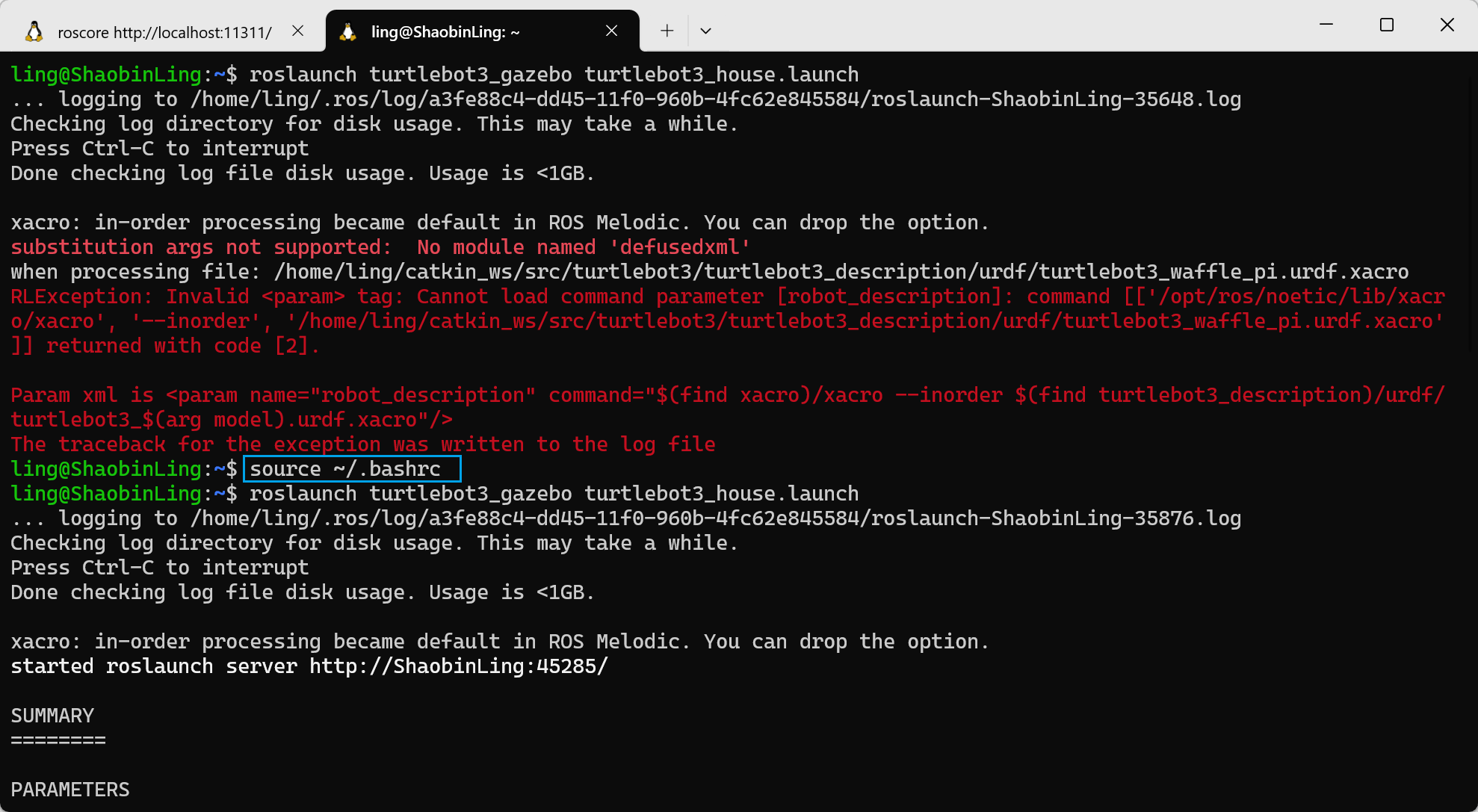

Therefore, when using this terminal to execute ROS-related commands, you need to source ~/.bashrc first. Operation shown in the image:

2. ROS File Structure (/opt/ros/)

• ROS (Robot Operating System) is an open-source robot operating system used for developing robotic applications. In Linux systems, the ROS file structure is typically located in the /opt/ros/ directory.

The content structure under the /opt/ros/ directory is as follows: - /opt/ros/noetic/ (or other versions, such as melodic, foxy) - bin/: Contains ROS command-line tools, such as roscore, roslaunch. - include/: Contains ROS library header files. - lib/: Contains ROS library files. - share/: ROS packages and resource files directory, usually containing various ROS packages (e.g., roscpp, rospy) and some tool configuration files.

Under /opt/ros/, there are usually specific version-related folders, such as noetic, which is a version of ROS 1. In this directory, you can find ROS core tools, packages, and libraries.

3. ROS Package Naming Conventions and Installation Methods

• ROS Package Naming Conventions

• ROS package naming typically follows these rules:

  • Lowercase letters and underscores: For example, my_robot_package.
  • Clear functionality: Package names are usually directly related to the package's function, such as ros_control, ros_comm, etc.
  • Version numbers: Some package names may include version information, especially in cross-version development, where you might see naming like my_package_v2.

• How to install ROS packages using apt

• In Ubuntu systems, ROS packages can be installed directly through the apt package
